COMBUSTION GAS ANALYZER

Products

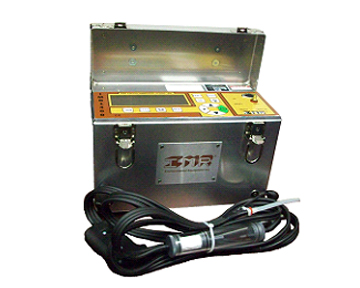

COMBUSTION GAS ANALYZER

Measures flue gases of Boilers, Burners, Engines
has been developed to meet the customers need
is a high quality combustion gas analyzer using the latest sensor technology
is easy to use and will measure all important parameters to adjust and optimize the combustion process
has all features for a complete analysis
Portable combustion gas analyzer housed in a rugged aluminum case
Simultaneous measurement of, O2 Oxygen, NO2 Nitrogen dioxide, CO Carbon Monoxide, SO2 Sulfur dioxide, NO Nitric oxide, TG Flue-gas temperature, TA Ambient Air temperature
Calculation of following parameters, Losses / Efficiency, NOx Nitrogen Oxides, Excess Air / Lambda, CO2 Carbon Dioxide
7 Fuels are programmed – 5 fuels are programmable
Automatic zero calibration
Thermal printer
Electronic controlled soot measurement
Draft measurement
CO-bypass valve with purging pump
RS 232 interface
Memory for 200 measurements
Rechargeable battery with charger
12V DC power jack
Integrated self-check program
Simultaneous display of eight parameters on the illuminated display
Unit selection : ppm - mg - mg(ref O2) – mg/kWh
Gas sampling probe S with heated handle – length 0.9 ft , hose 11.5 ft
Power supply 110V or 230V

OPTIONAL FEATURES

Gas sampling probes with different lengths
HC-measurement
NO2-measurement

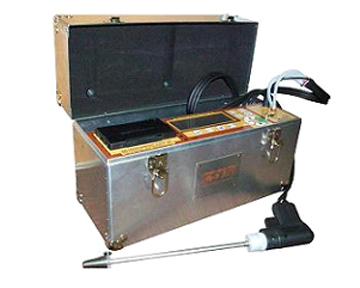

COMBUSTION GAS ANALYZER

Latest sensor technology for a more accurate measurement and longer life time
Improved interior design for easier service and better unit protection
Continuously and simultaneously measuring up to 18 parameters
Larger display for a better reading

STANDARD FEATURES

Simultaneous measurement of, O2 Oxygen, NO2 Nitrogen dioxide, CO Carbon Monoxide, SO2 Sulfur dioxide, NO Nitric oxide, TG Flue-gas temperature, TA Ambient Air temperature
Calculation of following parameters, Losses / Efficiency, NOx Nitrogen Oxides, Excess Air / Lambda, CO2 Carbon Dioxide
7 Fuels are programmed – 5 fuels are programmable
23 Fuels are programmed – 4 fuels are programmable
Automatic zero calibration
Integrated self-check program
Simultaneous display parameters on the illuminated display
Printer with programmable print out cycles
Standard deviation and average value calculation
Draft measurement with optional upgrade for differential draft and velocity measured with a Pitot tube
Unit selection : ppm – mg/Nm3 – mg/Nm3(ref O2)
Gas sampling probe E – length 0.8 ft (250mm), hose 8 ft (2.5m)
Rechargeable battery with charger
Power supply 110V or 230V

OPTIONAL FEATURES

HCl, N2O, CL2, H2, NH3, HC or H2S measurement
O2, CH4/HC and N2O NDIR sensors available
Speed RPM
Prepared for high temperature measurement (up to 2732 F / 1500 C)
Gas sampling probes with different lengths
Soot measurement
Gas Flow m/s
Additional Instruments: RPM Meter, Soot Meter

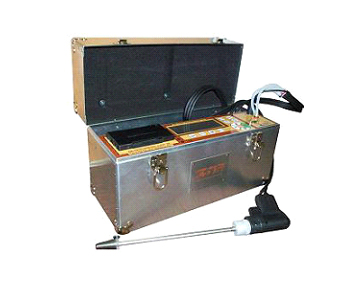

Combustion Gas Analyzer- (SO2) Series

has been designed to measure flue gases on Boilers, Turbines, Burners, Cars, Engines,Trucks
has been developed to meet the customers need
is a high quality combustion gas analyzer using the latest sensor technology
is easy to use and will measure all the important parameters to adjust or optimize the combustion process

STANDARD FEATURES

Portable and very compact combustion gas analyzer housed in a rugged aluminum case
Simultaneous measurement of O2 Oxygen, CO Carbon Monoxide, SO2 Sulfur Dioxide, TG Flue-gas temperature
Calculation of following parameters according ASME-equations, Combustion efficiency, Losses, Excess Air, CO2 Carbon Dioxide
7 Fuels are programmed – 5 fuels are programmable
Automatic zero calibration
Integrated self-check program
Simultaneous display of eight parameters on the illuminated display
Unit selection : ppm - mg - mg(ref O2) – mg/kWh
Gas sampling probe E – length 0.8 ft , hose 8 ft
Rechargeable battery with charger
Power supply 110V or 230V

OPTIONAL FEATURES

Ambient air temperature probe
Gas sampling probe with heated handle
Gas sampling probes with different lengths
Electronic controlled soot measurement
Draft measurement
NOx-measurement
NO2-measurement
HC-measurement
CO-bypass valve with purging pump
RS 232 interface
Memory for 200 measurements
12V DC power jack

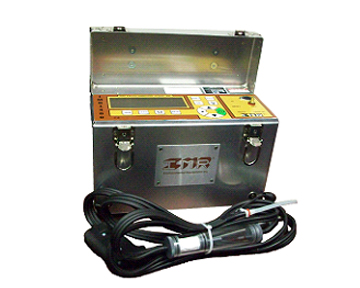

Combustion Gas Analyzer- (NO) Series

has been designed to measure flue gases on Boilers, Turbines, Burners, Cars,Engines, Trucks
has been developed to meet the customers need
is a high quality combustion gas analyzer using the latest sensor technology
is easy to use and will measure all the important parameters to adjust or optimize the combustion process

STANDARD FEATURES

Portable and very compact combustion gas analyzer housed in a rugged aluminum case
Simultaneous measurement of O2 Oxygen, CO Carbon Monoxide, SO2 Sulfur Dioxide, TG Flue-gas temperature
Calculation of following parameters according ASME-equations, Combustion efficiency, Losses, Excess Air, CO2 Carbon Dioxide
7 Fuels are programmed – 5 fuels are programmable
Automatic zero calibration
Integrated self-check program
Simultaneous display of eight parameters on the illuminated display
Unit selection : ppm - mg - mg(ref O2) – mg/kWh
Gas sampling probe E – length 0.8 ft , hose 8 ft
Rechargeable battery with charger
Power supply 110V or 230V

OPTIONAL FEATURES

Ambient air temperature probe
Gas sampling probe with heated handle
Gas sampling probes with different lengths
Electronic controlled soot measurement
Draft measurement
NOx-measurement
NO2-measurement
HC-measurement
CO-bypass valve with purging pump
RS 232 interface
Memory for 200 measurements
12V DC power jack

Combustion Gas Analyzer- (HC) Series

has been designed to measure flue gases on Boilers, Turbines, Burners, Cars,Engines, Trucks
has been developed to meet the customers need
is a high quality combustion gas analyzer using the latest sensor technology
is easy to use and will measure all the important parameters to adjust or optimize the combustion process

STANDARD FEATURES

Portable and very compact combustion gas analyzer housed in a rugged aluminum case
Simultaneous measurement of O2 Oxygen, CO Carbon Monoxide, SO2 Sulfur Dioxide, TG Flue-gas temperature
Calculation of following parameters according ASME-equations, Combustion efficiency, Losses, Excess Air, CO2 Carbon Dioxide
7 Fuels are programmed – 5 fuels are programmable
Automatic zero calibration
Integrated self-check program
Simultaneous display of eight parameters on the illuminated display
Unit selection : ppm - mg - mg(ref O2) – mg/kWh
Gas sampling probe E – length 0.8 ft , hose 8 ft
Rechargeable battery with charger
Power supply 110V or 230V

OPTIONAL FEATURES

Ambient air temperature probe
Gas sampling probe with heated handle
Gas sampling probes with different lengths
Electronic controlled soot measurement
Draft measurement
NOx-measurement
NO2-measurement
SO2-measurement
H2S-measurement
RS 232 interface
Memory for 200 measurements
12V DC power jack
CO-bypass valve with purging pump

Combustion Gas Analyzer- (CO2) Series

This latest model does not only measure the most common parameters but also CO2!!

has been designed to measure flue gases on Boilers, Burners' Engines
has been developed to meet the customers need
is a high quality combustion gas analyzer using the latest sensor technology
is easy to use and will measure all the important parameters to adjust or optimize the combustion process

STANDARD FEATURES

Portable and very compact combustion gas analyzer housed in a rugged aluminum case
Simultaneous measurement of O2 Oxygen, CO Carbon Monoxide, NO Nitric Oxide, TG Flue-gas temperature, CO2 Carbon Dioxide, AG Ambient Air temperature
Calculation of following parameters according ASME-equations, Combustion efficiency, Losses, Excess Air
7 Fuels are programmed – 5 fuels are programmable
Automatic zero calibration
Thermal printer
Electronic controlled soot measurement
Draft measurement
CO-bypass valve with purging pump
RS 232 interface
Memory for 200 measurements
Rechargeable battery with charger
12V DC power jack
Integrated self-check program
Simultaneous display of eight parameters on the illuminated display
Unit selection : ppm - mg - mg(ref O2) – mg/kWh
Gas sampling probe S with heated handle – length 0.9 ft , hose 11.5 ft
Power supply 110V or 230V

OPTIONAL FEATURES

Gas sampling probes with different lengths
NO2-measurement
SO2-measurement
HC/CH4-measurement NDIR

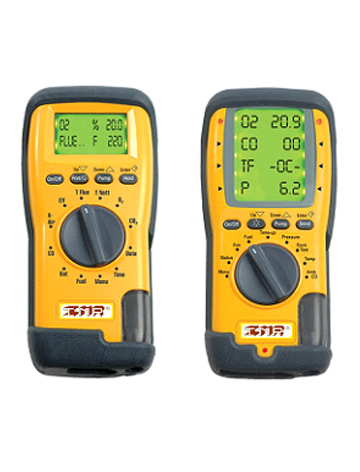

PORTABLE COMBUSTION GAS ANALYZER

This is a hand held pocket size stack gas analyzer for combustion tests on boilers, burners, etc. The System have up to two sensors with a 2-line LCD while other configuration have a 4-line LCD and come with up to 3 sensors.

Up to 3 sensors
Small and rugged
Easy to operate
Light weight
Memory
Infrared Interface for printer
Protective boot with integral magnet
Large backlit display
Reliable Technology
Easy to service
Displayed parameter can be chosen

Measured parameters:

Oxygen O2
Carbon Monoxide CO
Carbon Monoxide CO (ambient)
Nitric Oxide NO
Flue-Gas Temperature

Calculated values

Combustion Efficiency
Excess Air
Carbon Dioxide
CO corrected to 0% O2

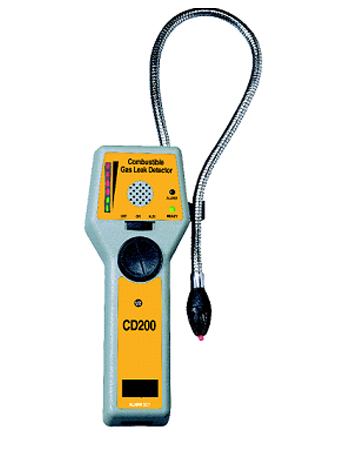

PORTABLE COMBUSTIBLE GAS LEAK DETECTOR-XX200

This is a small, easy to use and has a 18” long flexible gooseneck with a bright LED tip to find combustible gas leaks in tight areas.

Adjustable tick rate to locate leaks quickly and easily
Visual leak detection by LED indicators
Separate user adjustable alarm for predetermined level detection
Precision sensor detects even the smallest leaks
Red LED located on the tip to illuminate the search area
Fast response time (<2 seconds to 40%LEL)
Small and light
Earphone
Impact resistant storage case

Partial list of gases detected:

Acetone, Alcohol, Ammonia, Butane, Gasoline, Halon, Hyydrogen Sulfide, Industrial Solvents, Jet Fuel, Laquer Thinners, Naphta, Natural Gas, Propane, Select Refrigerants ... and more

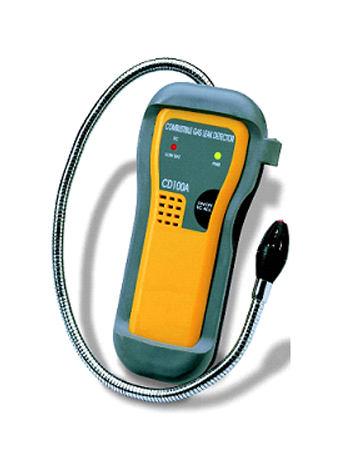

PORTABLE COMBUSTIBLE GAS LEAK DETECTOR-XX100

This is designed to detect combustible gas leaks in residential and small commercial applications. It is small, easy to use and has a 18” long flexible gooseneck for hard to reach areas.

Simple adjustable tick rate increases as the sensor tip approaches a leak
Audio and visual tick rate, fully adjustable
Easy one hand operation
Long 18” (45cm) gooseneck for hard to reach areas
‘Tip light’ in sensor cover illuminates the area of theleak
Rubber boot protects instrument
Sensor provides accurate detection
Headphone jack
Separate battery compartment for quick and easy battery replacement

Partial list of gases sensed:

Acetone, Alcohol, Ammonia, Benzene, Butane, Gasoline, Halon, Hyydrogen Sulfide, Industrial Solvents, Jet Fuel, Laquer Thinners, Methane, Naphta, Natural Gas, Propane,Refrigerants, Toluene ... and more
