Environmental Gas Analyzers

Products

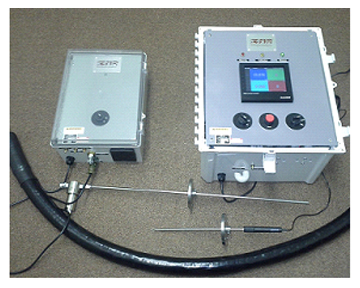

It is state-of-the-art continuous flue-gas monitoring system, and is designed for a wide variety of flue-gas monitoring applications.
This is a stand-alone analyzer that works automatically. The rugged wall mounted enclosure meets NEMA type 4X (IP65) standards.
The modular approach of the system allows one or more gases (up to 12 gases) to be measure simultaneously.
System uses the latest sensor technology from electro-chemical sensors up to NDIR benches.
System can be build to customer specifications
Analog 4 – 20mA or 0 – 20mA, RS232, Ethernet, RS485 are supported by the IMR 5000

Latest sensor technology for a more accurate measurement and longer life time
Improved interior design for easier service and better unit protection
Continuously and simultaneously measuring up to 18 parameters
Larger display for a better reading

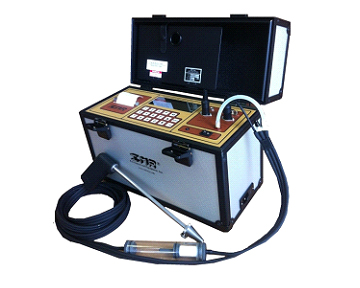

Portable combustion gas analyzer housed in a rugged aluminum case
Simultaneous measurement of, O2 Oxygen, NO2 Nitrogen dioxide, CO Carbon Monoxide, SO2 Sulfur dioxide, NO Nitric oxide, TG Flue-gas temperature, TA Ambient Air temperature
Calculation of following parameters, Losses / Efficiency, NOx Nitrogen Oxides, Excess Air / Lambda, CO2 Carbon Dioxide
Automatic zero calibration
Integrated self-check program
Simultaneous display parameters on the illuminated display
Printer with programmable print out cycles
Standard deviation and average value calculation
Draft measurement with optional upgrade for differential draft and velocity measured with a Pitot tube
Unit selection : ppm – mg/Nm3 – mg/Nm3(ref O2)
Gas sampling probe E – length 0.8 ft (250mm), hose 8 ft (2.5m)
Rechargeable battery with charger
Power supply 110V or 230V
